How to Launch a Local UNTP Reference Implementation

info

Here you'll launch your own UNTP Reference Implementation on your local computer. This will enable you to issue your own set of credentials including Digital Product Passports, Digital Facility Records, Digital Traceability Events and more.

Need help? Join our 💬 UNTP community chat for live support.

The UNTP Test Suite Includes:

Verifiable Credential Service (VCkit): Manages DIDs and issues, verifies, and revokes Verifiable Credentials.
Storage Service: Stores UNTP credentials.
Identity Resolver Service (IDR): Manages links to data (including UNTP credentials) that are associated with identifiers.
Mock GS1 IDR Service: Stand-in resolver for GS1.
Database (Postgres): Required for VCkit.

Prerequisites

Docker Desktop - https://docs.docker.com/desktop/
Node Version Manager (NVM) - Install through CLI explained later

Skill Level

Entry Level Developer
Mid-level Analyst

Steps

Clone/Download the UNTP Reference Implementation and Test Suite from a Terminal CLI or directly from GitHub
1. If using Git terminal (recommended), use Git to clone the repo
```
git clone https://github.com/uncefact/tests-untp.git
```

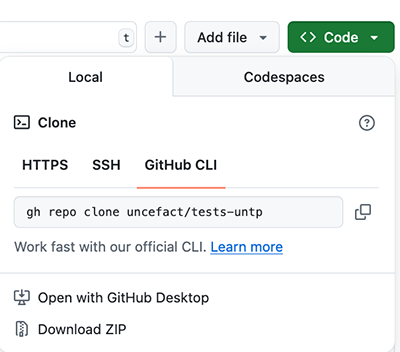

2. Or download as ZIP directly from the link: https://github.com/uncefact/tests-untp
Install Prerequisites
1. Change to test-untp working directory
```
cd tests-untp
```
2. Install NVM 20.12.2 and follow prompts to confirm version
```
nvm install 20.12.2
nvm use 20.12.2
```
3. Install Yarn 1.22.22
```
npm install -g yarn@1.22.22
```
4. CRITICAL: Verify Node version is actually 20.12.2 - Node Version Manager behaves differently depending on your local Operating System. Verify the current running version of node, if it's not 20.12.2 you may need to explore this on your own (LLM Chat Services are great for this) to ensure that 20.12.2 is running
```
node -v
```
5. If you see a different version (common on Windows):
  1. Close your terminal completely and reopen it
  2. Run nvm use 20.12.2 again
  3. If still wrong, try running commands in Command Prompt instead of Git Bash
  4. Or manually set PATH: export PATH="/c/Users/[username]/AppData/Roaming/nvm/v20.12.2:$PATH"
6. Once 20.12.2 is confirmed to be running, you can move on to next step.
Launch Docker Compose Services
1. Launch Docker Desktop
  1. Verify Docker is running:
    docker --version
  2. If this fails, make sure Docker Desktop is fully started
2. Launch Docker "Backing Services" Images
```
SEEDING=true docker compose up -d
```
3. You will see a result like this which can take several minutes to complete
4. Final Version Check before launching the Reference Implementation - Check Node and Yarn Versions
```
node -v
yarn -v
```
  1. Node 20.12.2
  2. Yarn 1.22.22
5. Once versions are confirmed, proceed to launch the Reference Implementation in Step 4
Install and Launch Reference Implementation - This will take several minutes (10+)
```
yarn install
yarn build
yarn start
```
1. Windows WSL Configuration Fix
  1. Issue - On Windows with Git Bash/WSL, the original instructions fail due to environment variable syntax incompatibility.
  2. Solution: Fix Environment Variable Handling
  3. Navigate to mock-app package
    cd packages/mock-app
  4. Install cross-env
    yarn add --dev cross-env
  5. Update package.json start script
    1. Edit packages/mock-app/package.json and change:

      From:
      "start": "PORT=3003 craco start"
      To:
      "start": "cross-env PORT=3003 craco start"
  6. Test the fix
    cd ../.. yarn start
  7. Expected Results
    1. No 'PORT' is not recognized as an internal or external command error
    2. Development server starts successfully on port 3003
    3. App loads at http://localhost:3003

The Reference Implementation should now be running in your browser

tip

Development server startup can take several minutes on first launch - this is normal.
